Schema FundPayment.xsd


schema location:  C:_work_LandsLíf_XML_FundPayment.xsd
targetNamespace:  http://strengur.is/FundPayment

Elements  Complex types
Date  EmployerType
EmployerSSN  PaymentEntriesType
EntityNo  PaymentEntryType
EntityType  PaymentType
FundPayments  SummariesType
SummaryType


element Date
diagram
namespace http://strengur.is/FundPayment
type xs:date
used by
complexType PaymentEntryType
annotation
documentation
Dagsetning útborgunar, á sniðinu YYYY-MM-DD.
source
<xs:element name="Date" type="xs:date">
  <xs:annotation>
    <xs:documentation>Dagsetning útborgunar, á sniðinu YYYY-MM-DD.</xs:documentation>
  </xs:annotation>
</xs:element>

element EmployerSSN
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:string
used by
complexType EmployerType
facets
minLength 10
maxLength 10
annotation
documentation
Kennitala launagreiðanda, án bandstriks.
source
<xs:element name="EmployerSSN">
  <xs:annotation>
    <xs:documentation>Kennitala launagreiðanda, án bandstriks.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="10"/>
      <xs:maxLength value="10"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element EntityNo
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:nonNegativeInteger
used by
complexTypes PaymentEntryType SummaryType
annotation
documentation
Númer lífeyrissjóðs skv. merkingum SAL eða númer stéttarfélags skv. merkingum Kjararannsóknarnefndar (sjá http:// www.ll.is)
source
<xs:element name="EntityNo">
  <xs:annotation>
    <xs:documentation>Númer lífeyrissjóðs skv. merkingum SAL eða númer stéttarfélags skv. merkingum Kjararannsóknarnefndar (sjá http:// www.ll.is)</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:nonNegativeInteger"/>
  </xs:simpleType>
</xs:element>

element EntityType
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:string
used by
complexTypes PaymentEntryType SummaryType
facets
minLength 1
maxLength 1
annotation
documentation
Tegund sjóðafærslu: L sameign), X (séreign) F (stéttarfélag),  S (sjúkrasjóður), O (orlofsheimilasjóður) E (starfsmenntasjóður) eða H (félagsheimilasjóður).
source
<xs:element name="EntityType">
  <xs:annotation>
    <xs:documentation>Tegund sjóðafærslu: L sameign), X (séreign) F (stéttarfélag),  S (sjúkrasjóður), O (orlofsheimilasjóður) E (starfsmenntasjóður) eða H (félagsheimilasjóður).</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:maxLength value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element FundPayments
diagram
namespace http://strengur.is/FundPayment
children Payment
annotation
documentation
Rót skilagreina, listi greiðsla
source
<xs:element name="FundPayments">
  <xs:annotation>
    <xs:documentation>Rót skilagreina, listi greiðsla</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="Payment" type="PaymentType">
        <xs:annotation>
          <xs:documentation>Greiðsla.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

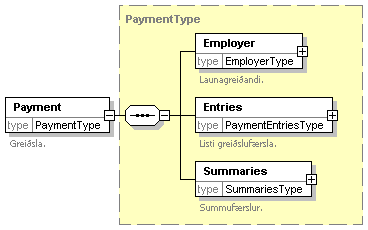

element FundPayments/Payment
diagram
namespace http://strengur.is/FundPayment
type PaymentType
children Employer Entries Summaries
annotation
documentation
Greiðsla.
source
<xs:element name="Payment" type="PaymentType">
  <xs:annotation>
    <xs:documentation>Greiðsla.</xs:documentation>
  </xs:annotation>
</xs:element>

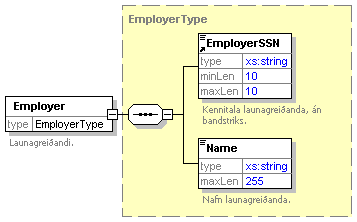

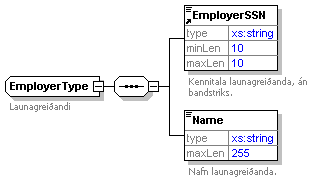

complexType EmployerType
diagram
namespace http://strengur.is/FundPayment
children EmployerSSN Name
used by
element PaymentType/Employer
annotation
documentation
Launagreiðandi
source
<xs:complexType name="EmployerType">
  <xs:annotation>
    <xs:documentation>Launagreiðandi</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="EmployerSSN"/>
    <xs:element name="Name">
      <xs:annotation>
        <xs:documentation>Nafn launagreiðanda.</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="255"/>
          <xs:whiteSpace value="preserve"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element EmployerType/Name
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:string
facets
maxLength 255
whiteSpace preserve
annotation
documentation
Nafn launagreiðanda.
source
<xs:element name="Name">
  <xs:annotation>
    <xs:documentation>Nafn launagreiðanda.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="255"/>
      <xs:whiteSpace value="preserve"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

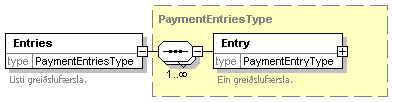

complexType PaymentEntriesType
diagram
namespace http://strengur.is/FundPayment
children Entry
used by
element PaymentType/Entries
annotation
documentation
Listi greiðslufærsla
source
<xs:complexType name="PaymentEntriesType">
  <xs:annotation>
    <xs:documentation>Listi greiðslufærsla</xs:documentation>
  </xs:annotation>
  <xs:sequence maxOccurs="unbounded">
    <xs:element name="Entry" type="PaymentEntryType">
      <xs:annotation>
        <xs:documentation>Ein greiðslufærsla.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element PaymentEntriesType/Entry
diagram
namespace http://strengur.is/FundPayment
type PaymentEntryType
children EntityType EntityNo PersonSSN MonthYear PeriodFrom PeriodTo Date PersonAmount EmployerAmount DaysAtSea EmploymentRatio PrivateFundPersonPercentage PrivateFundEmployerPercentage SalaryTable SalaryCategory SalarySubcategory AdditionalAmount
annotation
documentation
Ein greiðslufærsla.
source
<xs:element name="Entry" type="PaymentEntryType">
  <xs:annotation>
    <xs:documentation>Ein greiðslufærsla.</xs:documentation>
  </xs:annotation>
</xs:element>

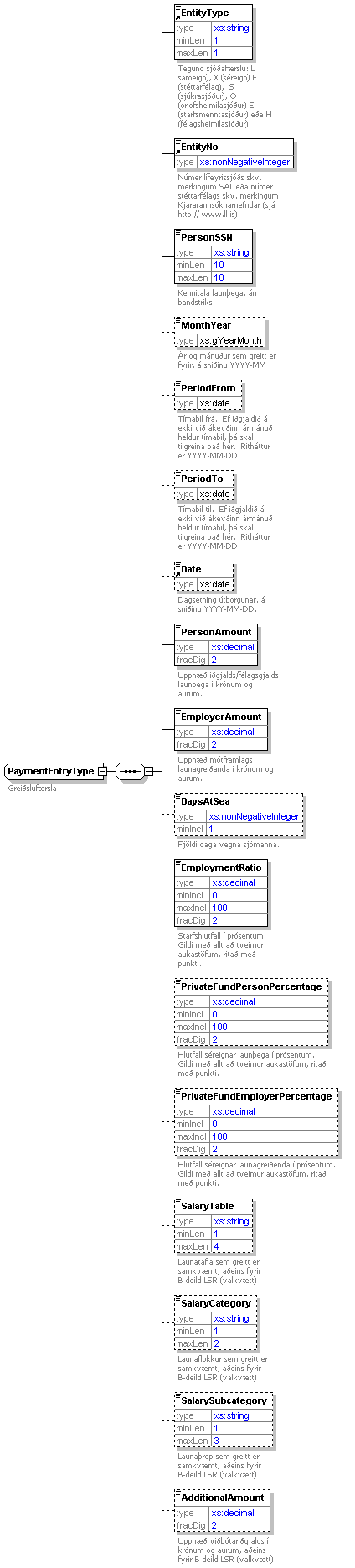

complexType PaymentEntryType
diagram
namespace http://strengur.is/FundPayment
children EntityType EntityNo PersonSSN MonthYear PeriodFrom PeriodTo Date PersonAmount EmployerAmount DaysAtSea EmploymentRatio PrivateFundPersonPercentage PrivateFundEmployerPercentage SalaryTable SalaryCategory SalarySubcategory AdditionalAmount
used by
element PaymentEntriesType/Entry
annotation
documentation
Greiðslufærsla
source
<xs:complexType name="PaymentEntryType">
  <xs:annotation>
    <xs:documentation>Greiðslufærsla</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="EntityType"/>
    <xs:element ref="EntityNo"/>
    <xs:element name="PersonSSN">
      <xs:annotation>
        <xs:documentation>Kennitala launþega, án bandstriks.</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:minLength value="10"/>
          <xs:maxLength value="10"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="MonthYear" type="xs:gYearMonth" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Ár og mánuður sem greitt er fyrir, á sniðinu YYYY-MM</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="PeriodFrom" type="xs:date" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Tímabil frá.  Ef iðgjaldið á ekki við ákevðinn ármánuð heldur tímabil, þá skal tilgreina það hér.  Ritháttur er YYYY-MM-DD.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="PeriodTo" type="xs:date" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Tímabil til.  Ef iðgjaldið á ekki við ákevðinn ármánuð heldur tímabil, þá skal tilgreina það hér.  Ritháttur er YYYY-MM-DD.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element ref="Date" minOccurs="0"/>
    <xs:element name="PersonAmount">
      <xs:annotation>
        <xs:documentation>Upphæð iðgjalds/félagsgjalds launþega í krónum og aurum.</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:fractionDigits value="2"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="EmployerAmount">
      <xs:annotation>
        <xs:documentation>Upphæð mótframlags launagreiðanda í krónum og aurum.</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:fractionDigits value="2"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="DaysAtSea" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Fjöldi daga vegna sjómanna.</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:nonNegativeInteger">
          <xs:minInclusive value="1"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="EmploymentRatio">
      <xs:annotation>
        <xs:documentation>Starfshlutfall í prósentum. Gildi með allt að tveimur aukastöfum, ritað með punkti.</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="0"/>
          <xs:maxInclusive value="100"/>
          <xs:fractionDigits value="2"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="PrivateFundPersonPercentage" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Hlutfall séreignar launþega í prósentum. Gildi með allt að tveimur aukastöfum, ritað með punkti.</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="0"/>
          <xs:maxInclusive value="100"/>
          <xs:fractionDigits value="2"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="PrivateFundEmployerPercentage" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Hlutfall séreignar launagreiðenda í prósentum. Gildi með allt að tveimur aukastöfum, ritað með punkti.</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:minInclusive value="0"/>
          <xs:maxInclusive value="100"/>
          <xs:fractionDigits value="2"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="SalaryTable" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Launatafla sem greitt er samkvæmt, aðeins fyrir B-deild LSR (valkvætt)</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="4"/>
          <xs:minLength value="1"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="SalaryCategory" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Launaflokkur sem greitt er samkvæmt, aðeins fyrir B-deild LSR (valkvætt)</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="2"/>
          <xs:minLength value="1"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="SalarySubcategory" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Launaþrep sem greitt er samkvæmt, aðeins fyrir B-deild LSR (valkvætt)</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="3"/>
          <xs:minLength value="1"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="AdditionalAmount" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Upphæð viðbótariðgjalds í krónum og aurum, aðeins fyrir B-deild LSR (valkvætt)</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:fractionDigits value="2"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element PaymentEntryType/PersonSSN
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:string
facets
minLength 10
maxLength 10
annotation
documentation
Kennitala launþega, án bandstriks.
source
<xs:element name="PersonSSN">
  <xs:annotation>
    <xs:documentation>Kennitala launþega, án bandstriks.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="10"/>
      <xs:maxLength value="10"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PaymentEntryType/MonthYear
diagram
namespace http://strengur.is/FundPayment
type xs:gYearMonth
annotation
documentation
Ár og mánuður sem greitt er fyrir, á sniðinu YYYY-MM
source
<xs:element name="MonthYear" type="xs:gYearMonth" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Ár og mánuður sem greitt er fyrir, á sniðinu YYYY-MM</xs:documentation>
  </xs:annotation>
</xs:element>

element PaymentEntryType/PeriodFrom
diagram
namespace http://strengur.is/FundPayment
type xs:date
annotation
documentation
Tímabil frá.  Ef iðgjaldið á ekki við ákevðinn ármánuð heldur tímabil, þá skal tilgreina það hér.  Ritháttur er YYYY-MM-DD.
source
<xs:element name="PeriodFrom" type="xs:date" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Tímabil frá.  Ef iðgjaldið á ekki við ákevðinn ármánuð heldur tímabil, þá skal tilgreina það hér.  Ritháttur er YYYY-MM-DD.</xs:documentation>
  </xs:annotation>
</xs:element>

element PaymentEntryType/PeriodTo
diagram
namespace http://strengur.is/FundPayment
type xs:date
annotation
documentation
Tímabil til.  Ef iðgjaldið á ekki við ákevðinn ármánuð heldur tímabil, þá skal tilgreina það hér.  Ritháttur er YYYY-MM-DD.
source
<xs:element name="PeriodTo" type="xs:date" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Tímabil til.  Ef iðgjaldið á ekki við ákevðinn ármánuð heldur tímabil, þá skal tilgreina það hér.  Ritháttur er YYYY-MM-DD.</xs:documentation>
  </xs:annotation>
</xs:element>

element PaymentEntryType/PersonAmount
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:decimal
facets
fractionDigits 2
annotation
documentation
Upphæð iðgjalds/félagsgjalds launþega í krónum og aurum.
source
<xs:element name="PersonAmount">
  <xs:annotation>
    <xs:documentation>Upphæð iðgjalds/félagsgjalds launþega í krónum og aurum.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:fractionDigits value="2"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PaymentEntryType/EmployerAmount
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:decimal
facets
fractionDigits 2
annotation
documentation
Upphæð mótframlags launagreiðanda í krónum og aurum.
source
<xs:element name="EmployerAmount">
  <xs:annotation>
    <xs:documentation>Upphæð mótframlags launagreiðanda í krónum og aurum.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:fractionDigits value="2"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PaymentEntryType/DaysAtSea
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:nonNegativeInteger
facets
minInclusive 1
annotation
documentation
Fjöldi daga vegna sjómanna.
source
<xs:element name="DaysAtSea" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Fjöldi daga vegna sjómanna.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:nonNegativeInteger">
      <xs:minInclusive value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PaymentEntryType/EmploymentRatio
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:decimal
facets
minInclusive 0
maxInclusive 100
fractionDigits 2
annotation
documentation
Starfshlutfall í prósentum. Gildi með allt að tveimur aukastöfum, ritað með punkti.
source
<xs:element name="EmploymentRatio">
  <xs:annotation>
    <xs:documentation>Starfshlutfall í prósentum. Gildi með allt að tveimur aukastöfum, ritað með punkti.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="100"/>
      <xs:fractionDigits value="2"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PaymentEntryType/PrivateFundPersonPercentage
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:decimal
facets
minInclusive 0
maxInclusive 100
fractionDigits 2
annotation
documentation
Hlutfall séreignar launþega í prósentum. Gildi með allt að tveimur aukastöfum, ritað með punkti.
source
<xs:element name="PrivateFundPersonPercentage" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Hlutfall séreignar launþega í prósentum. Gildi með allt að tveimur aukastöfum, ritað með punkti.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="100"/>
      <xs:fractionDigits value="2"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PaymentEntryType/PrivateFundEmployerPercentage
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:decimal
facets
minInclusive 0
maxInclusive 100
fractionDigits 2
annotation
documentation
Hlutfall séreignar launagreiðenda í prósentum. Gildi með allt að tveimur aukastöfum, ritað með punkti.
source
<xs:element name="PrivateFundEmployerPercentage" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Hlutfall séreignar launagreiðenda í prósentum. Gildi með allt að tveimur aukastöfum, ritað með punkti.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="100"/>
      <xs:fractionDigits value="2"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PaymentEntryType/SalaryTable
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:string
facets
minLength 1
maxLength 4
annotation
documentation
Launatafla sem greitt er samkvæmt, aðeins fyrir B-deild LSR (valkvætt)
source
<xs:element name="SalaryTable" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Launatafla sem greitt er samkvæmt, aðeins fyrir B-deild LSR (valkvætt)</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="4"/>
      <xs:minLength value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PaymentEntryType/SalaryCategory
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:string
facets
minLength 1
maxLength 2
annotation
documentation
Launaflokkur sem greitt er samkvæmt, aðeins fyrir B-deild LSR (valkvætt)
source
<xs:element name="SalaryCategory" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Launaflokkur sem greitt er samkvæmt, aðeins fyrir B-deild LSR (valkvætt)</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="2"/>
      <xs:minLength value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PaymentEntryType/SalarySubcategory
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:string
facets
minLength 1
maxLength 3
annotation
documentation
Launaþrep sem greitt er samkvæmt, aðeins fyrir B-deild LSR (valkvætt)
source
<xs:element name="SalarySubcategory" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Launaþrep sem greitt er samkvæmt, aðeins fyrir B-deild LSR (valkvætt)</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="3"/>
      <xs:minLength value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PaymentEntryType/AdditionalAmount
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:decimal
facets
fractionDigits 2
annotation
documentation
Upphæð viðbótariðgjalds í krónum og aurum, aðeins fyrir B-deild LSR (valkvætt)
source
<xs:element name="AdditionalAmount" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Upphæð viðbótariðgjalds í krónum og aurum, aðeins fyrir B-deild LSR (valkvætt)</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:fractionDigits value="2"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

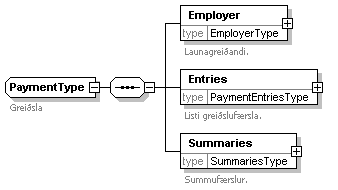

complexType PaymentType
diagram
namespace http://strengur.is/FundPayment
children Employer Entries Summaries
used by
element FundPayments/Payment
annotation
documentation
Greiðsla
source
<xs:complexType name="PaymentType">
  <xs:annotation>
    <xs:documentation>Greiðsla</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Employer" type="EmployerType">
      <xs:annotation>
        <xs:documentation>Launagreiðandi.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Entries" type="PaymentEntriesType">
      <xs:annotation>
        <xs:documentation>Listi greiðslufærsla.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Summaries" type="SummariesType">
      <xs:annotation>
        <xs:documentation>Summufærslur.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element PaymentType/Employer
diagram
namespace http://strengur.is/FundPayment
type EmployerType
children EmployerSSN Name
annotation
documentation
Launagreiðandi.
source
<xs:element name="Employer" type="EmployerType">
  <xs:annotation>
    <xs:documentation>Launagreiðandi.</xs:documentation>
  </xs:annotation>
</xs:element>

element PaymentType/Entries
diagram
namespace http://strengur.is/FundPayment
type PaymentEntriesType
children Entry
annotation
documentation
Listi greiðslufærsla.
source
<xs:element name="Entries" type="PaymentEntriesType">
  <xs:annotation>
    <xs:documentation>Listi greiðslufærsla.</xs:documentation>
  </xs:annotation>
</xs:element>

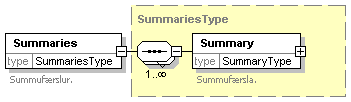

element PaymentType/Summaries
diagram
namespace http://strengur.is/FundPayment
type SummariesType
children Summary
annotation
documentation
Summufærslur.
source
<xs:element name="Summaries" type="SummariesType">
  <xs:annotation>
    <xs:documentation>Summufærslur.</xs:documentation>
  </xs:annotation>
</xs:element>

complexType SummariesType
diagram
namespace http://strengur.is/FundPayment
children Summary
used by
element PaymentType/Summaries
annotation
documentation
Listi sundurliðana
source
<xs:complexType name="SummariesType">
  <xs:annotation>
    <xs:documentation>Listi sundurliðana</xs:documentation>
  </xs:annotation>
  <xs:sequence maxOccurs="unbounded">
    <xs:element name="Summary" type="SummaryType">
      <xs:annotation>
        <xs:documentation>Summufærsla.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element SummariesType/Summary
diagram
namespace http://strengur.is/FundPayment
type SummaryType
children EntityType EntityNo PersonAmountSum EmployerAmountSum
annotation
documentation
Summufærsla.
source
<xs:element name="Summary" type="SummaryType">
  <xs:annotation>
    <xs:documentation>Summufærsla.</xs:documentation>
  </xs:annotation>
</xs:element>

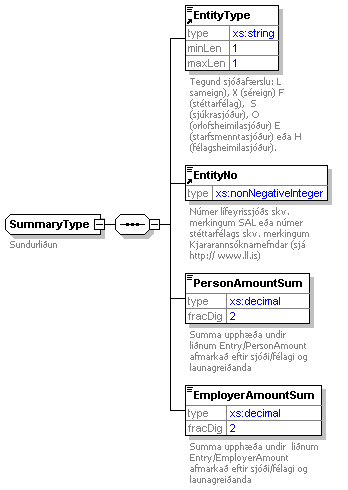

complexType SummaryType
diagram
namespace http://strengur.is/FundPayment
children EntityType EntityNo PersonAmountSum EmployerAmountSum
used by
element SummariesType/Summary
annotation
documentation
Sundurliðun
source
<xs:complexType name="SummaryType">
  <xs:annotation>
    <xs:documentation>Sundurliðun</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="EntityType"/>
    <xs:element ref="EntityNo"/>
    <xs:element name="PersonAmountSum">
      <xs:annotation>
        <xs:documentation>Summa upphæða undir  liðnum Entry/PersonAmount afmarkað eftir sjóði/félagi og launagreiðanda</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:fractionDigits value="2"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="EmployerAmountSum">
      <xs:annotation>
        <xs:documentation>Summa upphæða undir  liðnum Entry/EmployerAmount afmarkað eftir sjóði/félagi og launagreiðanda</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:fractionDigits value="2"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element SummaryType/PersonAmountSum
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:decimal
facets
fractionDigits 2
annotation
documentation
Summa upphæða undir  liðnum Entry/PersonAmount afmarkað eftir sjóði/félagi og launagreiðanda
source
<xs:element name="PersonAmountSum">
  <xs:annotation>
    <xs:documentation>Summa upphæða undir  liðnum Entry/PersonAmount afmarkað eftir sjóði/félagi og launagreiðanda</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:fractionDigits value="2"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element SummaryType/EmployerAmountSum
diagram
namespace http://strengur.is/FundPayment
type restriction of xs:decimal
facets
fractionDigits 2
annotation
documentation
Summa upphæða undir  liðnum Entry/EmployerAmount afmarkað eftir sjóði/félagi og launagreiðanda
source
<xs:element name="EmployerAmountSum">
  <xs:annotation>
    <xs:documentation>Summa upphæða undir  liðnum Entry/EmployerAmount afmarkað eftir sjóði/félagi og launagreiðanda</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:fractionDigits value="2"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>


XML Schema documentation generated with XMLSPY Schema Editor http://www.altova.com/xmlspy
